Name: NX6008NBKR
Brand: Nexperia USA Inc.
SKU: NX6008NBKR
Price: 0.23 USD
Availability: InStock

REF: NX6008NBKR Nexperia USA Inc.

NX6008NBKR

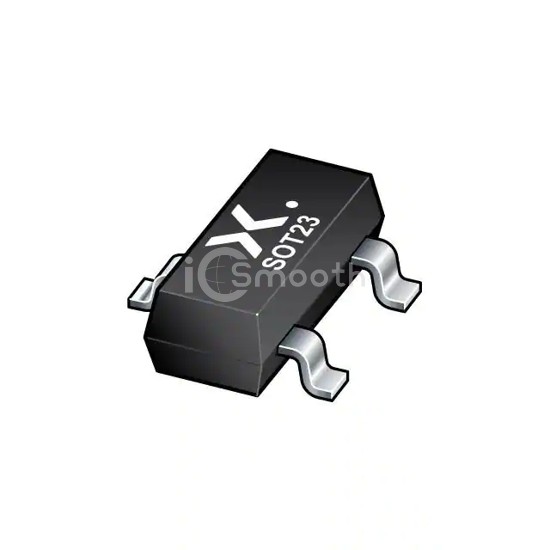

NX6008NBK/SOT23/TO-236AB

NX6008NBKR is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. NX6008NBK/SOT23/TO-236AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 8,517

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	270mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 300mA, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.7 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	27 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	270mW (Ta), 1.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-236AB
Package / Case	TO-236-3, SC-59, SOT-23-3
