NX3008NBKMB,315

In Stock: 6,152

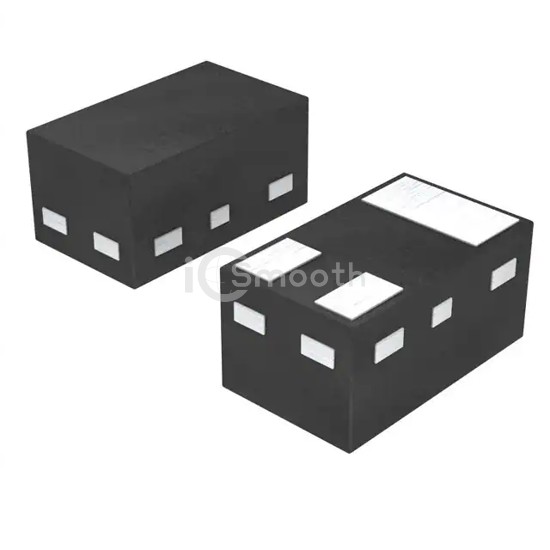

NX3008NBKMB,315 - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: NX3008NBKMB,315 Nexperia USA Inc.
NX3008NBKMB,315

Nexperia USA Inc.

MOSFET N-CH 30V 530MA DFN1006B-3

NX3008NBKMB,315 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 30V 530MA DFN1006B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 6,152

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C530mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs1.4Ohm @ 350mA, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 15 V
FET Feature-
Power Dissipation (Max)360mW (Ta), 2.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006B-3
Package / Case3-XFDFN
