Name: HEF4053BTT-Q100J
Brand: Nexperia USA Inc.
SKU: HEF4053BTT-Q100J
Price: 0.24 USD
Availability: InStock

REF: HEF4053BTT-Q100J Nexperia USA Inc.

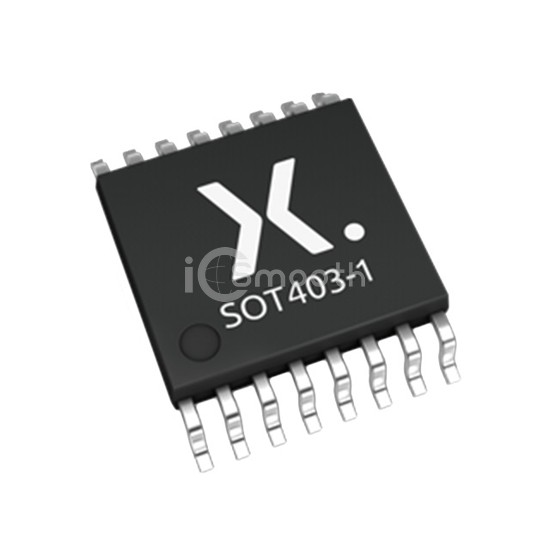

HEF4053BTT-Q100J

Nexperia USA Inc.

IC ANLG SWITCH TRPL SPDT 16TSSOP

HEF4053BTT-Q100J is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC ANLG SWITCH TRPL SPDT 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 3.

Datasheet Request a Quote

In Stock: 5,757

Tiered Pricing USD

2,500+ $0.2377 —

5,000+ $0.2311 -3%

7,500+ $0.2278 -4%

12,500+ $0.2242 -6%

17,500+ $0.2221 -7%

25,000+ $0.2200 -7% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	3
On-State Resistance (Max)	155Ohm
Channel-to-Channel Matching (ΔRon)	5Ohm
Voltage - Supply, Single (V+)	3V ~ 15V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	70MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	7.5pF
Current - Leakage (IS(off)) (Max)	200nA
Crosstalk	-50dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
