Name: BUK9M15-60EX
Brand: Nexperia USA Inc.
SKU: BUK9M15-60EX
Price: 0.96 USD
Availability: InStock

REF: BUK9M15-60EX Nexperia USA Inc.

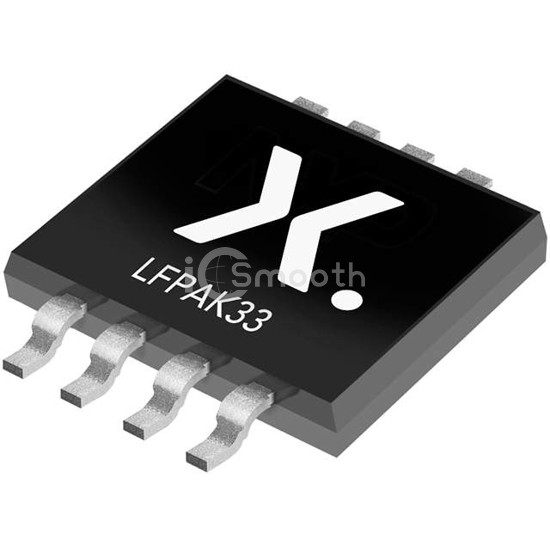

BUK9M15-60EX

MOSFET N-CH 60V 47A LFPAK33

BUK9M15-60EX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 60V 47A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).

Datasheet Request a Quote

In Stock: 8,298

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	47A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	13mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.45V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	17 nC @ 5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	2230 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	75W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK33
Package / Case	SOT-1210, 8-LFPAK33 (5-Lead)
