Name: BUK9E06-55A,127
Brand: Nexperia USA Inc.
SKU: BUK9E06-55A,127
Availability: InStock

REF: BUK9E06-55A,127 Nexperia USA Inc.

BUK9E06-55A,127

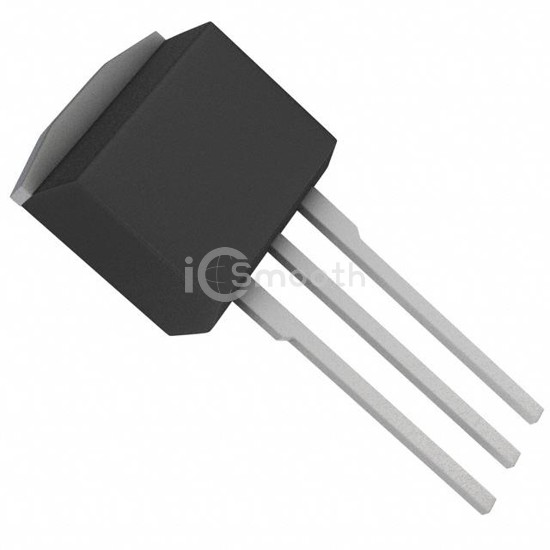

MOSFET N-CH 55V 75A I2PAK

BUK9E06-55A,127 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 55V 75A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 6,205

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.8mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	8600 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
