BUK7S1R5-40HJ

In Stock: 2,000

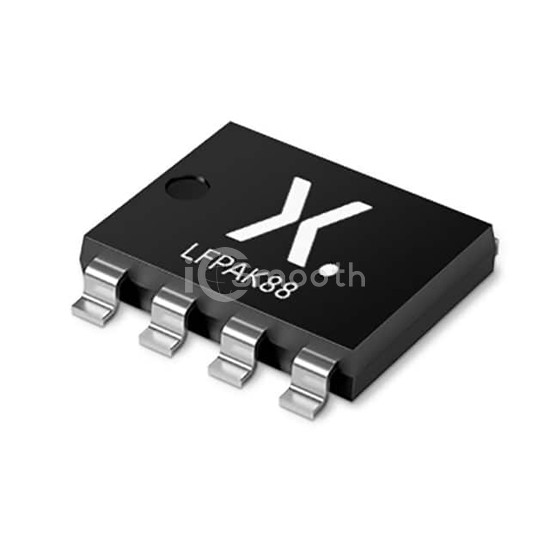

BUK7S1R5-40HJ - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: BUK7S1R5-40HJ Nexperia USA Inc.
BUK7S1R5-40HJ

Nexperia USA Inc.

MOSFET N-CH 40V 260A LFPAK88

BUK7S1R5-40HJ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 260A LFPAK88. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1235.

Request a Quote

In Stock: 2,000

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C260A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs93 nC @ 10 V
Vgs (Max)+20V, -10V
Input Capacitance (Ciss) (Max) @ Vds6712 pF @ 25 V
FET Feature-
Power Dissipation (Max)242W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK88 (SOT1235)
Package / CaseSOT-1235
