Name: BUK7M45-40EX
Brand: Nexperia USA Inc.
SKU: BUK7M45-40EX
Price: 0.69 USD
Availability: InStock

REF: BUK7M45-40EX Nexperia USA Inc.

BUK7M45-40EX

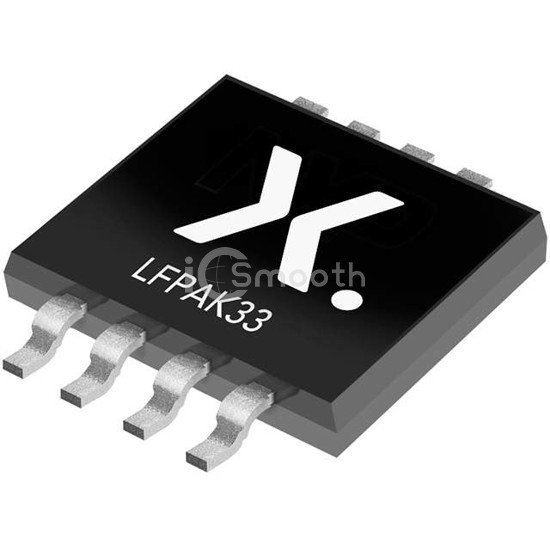

MOSFET N-CH 40V 19A LFPAK33

BUK7M45-40EX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 19A LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1210, 8-LFPAK33 (5-Lead).

Datasheet Request a Quote

In Stock: 4,886

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	19A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	45mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	6.2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	317 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	31W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK33
Package / Case	SOT-1210, 8-LFPAK33 (5-Lead)
