BUK7909-75ATE127

In Stock: 935

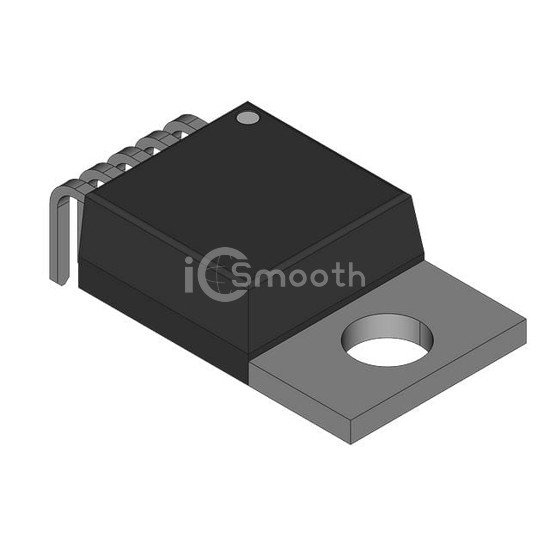

BUK7909-75ATE127 - Nexperia USA Inc. - Transistors - FETs, MOSFETs - Single
REF: BUK7909-75ATE127 Nexperia USA Inc.
BUK7909-75ATE127

Nexperia USA Inc.

N-CHANNEL POWER MOSFET

BUK7909-75ATE127 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. N-CHANNEL POWER MOSFET. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-5.

Datasheet Request a Quote

In Stock: 935

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)75 V
Current - Continuous Drain (Id) @ 25°C75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs121 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4700 pF @ 25 V
FET FeatureTemperature Sensing Diode
Power Dissipation (Max)272W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220-5
Package / CaseTO-220-5
