Name: BUK7909-75AIE,127
Brand: Nexperia USA Inc.
SKU: BUK7909-75AIE,127
Availability: InStock

REF: BUK7909-75AIE,127 Nexperia USA Inc.

BUK7909-75AIE,127

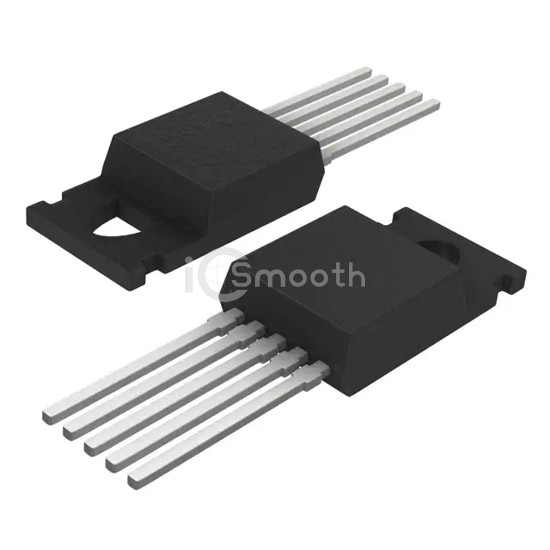

MOSFET N-CH 75V 75A TO220-5

BUK7909-75AIE,127 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 75V 75A TO220-5. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-5.

Datasheet Request a Quote

In Stock: 4,556

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	121 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4700 pF @ 25 V
FET Feature	Current Sensing
Power Dissipation (Max)	272W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-5
Package / Case	TO-220-5
