Name: BUK7509-55A,127-NEX
Brand: Nexperia USA Inc.
SKU: BUK7509-55A,127-NEX
Availability: InStock

REF: BUK7509-55A,127-NEX Nexperia USA Inc.

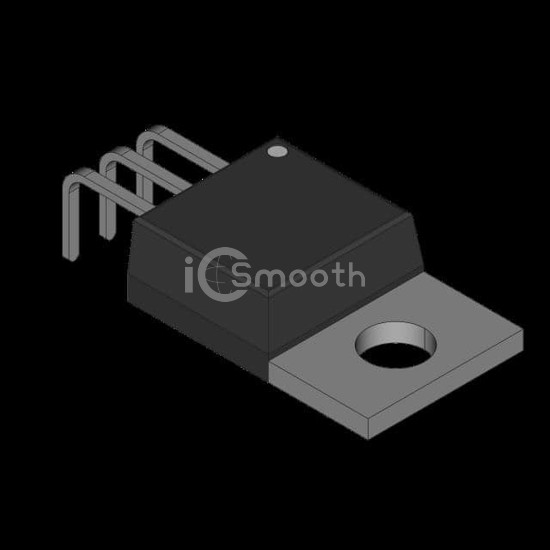

BUK7509-55A,127-NEX

PFET, 75A I(D), 55V, 0.009OHM, 1

BUK7509-55A,127-NEX is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. PFET, 75A I(D), 55V, 0.009OHM, 1. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Request a Quote

In Stock: 4,355

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	62 nC @ 0 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3271 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	211W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
