Name: BUK7107-40ATC,118
Brand: Nexperia USA Inc.
SKU: BUK7107-40ATC,118
Availability: InStock

REF: BUK7107-40ATC,118 Nexperia USA Inc.

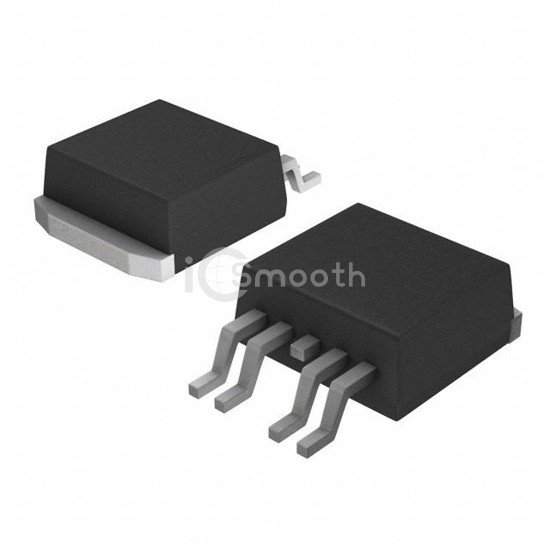

BUK7107-40ATC,118

MOSFET N-CH 40V 75A SOT426

BUK7107-40ATC,118 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 75A SOT426. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-5, D²Pak (4 Leads + Tab), TO-263BB.

Datasheet Request a Quote

In Stock: 5,600

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	75A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	108 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4500 pF @ 25 V
FET Feature	Temperature Sensing Diode
Power Dissipation (Max)	272W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK
Package / Case	TO-263-5, D²Pak (4 Leads + Tab), TO-263BB
