Name: BUK6E3R4-40C,127
Brand: Nexperia USA Inc.
SKU: BUK6E3R4-40C,127
Availability: InStock

REF: BUK6E3R4-40C,127 Nexperia USA Inc.

BUK6E3R4-40C,127

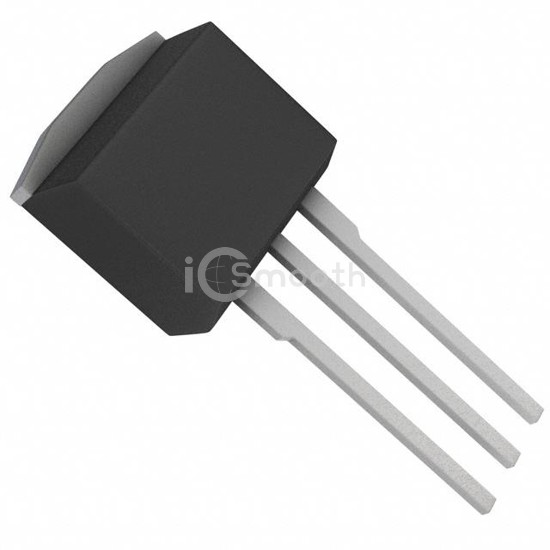

MOSFET N-CH 40V 100A I2PAK

BUK6E3R4-40C,127 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET N-CH 40V 100A I2PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 8,312

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	125 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	8020 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	204W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
