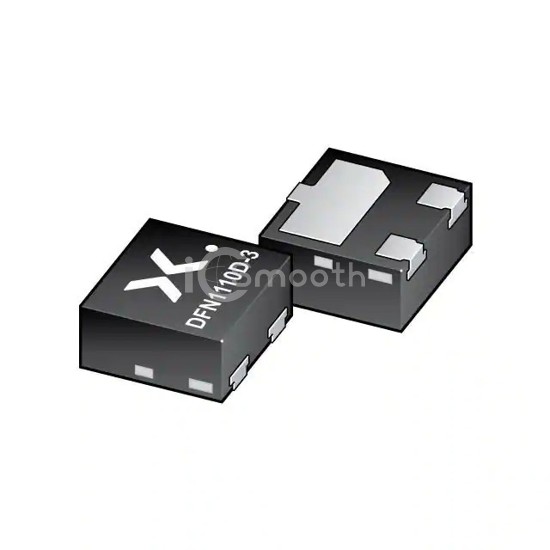

Name: BSS84AKQBZ
Brand: Nexperia USA Inc.
SKU: BSS84AKQBZ
Price: 0.47 USD
Availability: InStock

REF: BSS84AKQBZ Nexperia USA Inc.

BSS84AKQBZ

BSS84AKQB/SOT8015/DFN1110D-3

BSS84AKQBZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. BSS84AKQB/SOT8015/DFN1110D-3. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 3-XDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,600

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	50 V
Current - Continuous Drain (Id) @ 25°C	270mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.5Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 10 V

Vgs (Max)	+12V, -20V
Input Capacitance (Ciss) (Max) @ Vds	23.2 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	420mW (Ta), 4.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	DFN1110D-3
Package / Case	3-XDFN Exposed Pad
