Name: BSS84AKMB,315
Brand: Nexperia USA Inc.
SKU: BSS84AKMB,315
Price: 0.36 USD
Availability: InStock

REF: BSS84AKMB,315 Nexperia USA Inc.

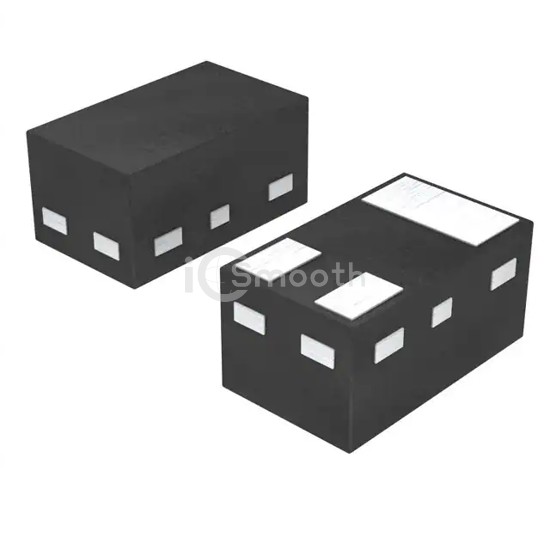

BSS84AKMB,315

Nexperia USA Inc.

MOSFET P-CH 50V 230MA DFN1006B-3

BSS84AKMB,315 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. MOSFET P-CH 50V 230MA DFN1006B-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 7,369

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	50 V
Current - Continuous Drain (Id) @ 25°C	230mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7.5Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.35 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	36 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta), 2.7W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006B-3
Package / Case	3-XFDFN
