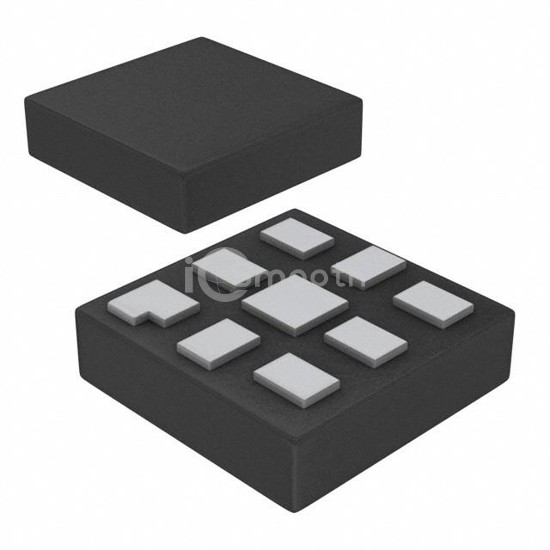

Name: 74LVCV2G66GM,125
Brand: Nexperia USA Inc.
SKU: 74LVCV2G66GM,125
Price: 0.19 USD
Availability: InStock

REF: 74LVCV2G66GM,125 Nexperia USA Inc.

74LVCV2G66GM,125

Nexperia USA Inc.

IC SWITCH DUAL SPST 8XQFN

74LVCV2G66GM,125 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH DUAL SPST 8XQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-XFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,933

Tiered Pricing USD

4,000+ $0.1856 —

8,000+ $0.1808 -3%

12,000+ $0.1784 -4%

20,000+ $0.1758 -5%

28,000+ $0.1742 -6%

40,000+ $0.1727 -7% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	2.3V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5ns, 9ns

-3db Bandwidth	210MHz
Charge Injection	0.0035pC
Channel Capacitance (CS(off), CD(off))	8pF
Current - Leakage (IS(off)) (Max)	10µA
Crosstalk	-55dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-XFQFN Exposed Pad
Supplier Device Package	8-XQFN (1.6x1.6)
