Name: 74LVC2G66GM
Brand: Nexperia USA Inc.
SKU: 74LVC2G66GM
Availability: InStock

REF: 74LVC2G66GM Nexperia USA Inc.

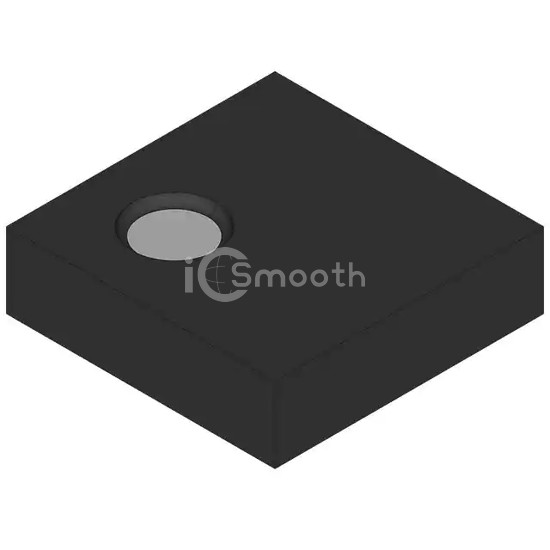

74LVC2G66GM

SPST, 2 FUNC, 1 CHANNEL, CMOS, P

74LVC2G66GM is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. SPST, 2 FUNC, 1 CHANNEL, CMOS, P. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 8-XFQFN Exposed Pad, number of circuits 2.

Datasheet Request a Quote

In Stock: 5,092

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	2
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	1.65V ~ 5.5V
Switch Time (Ton, Toff) (Max)	3.9ns, 5ns

-3db Bandwidth	500MHz
Charge Injection	7.5pC
Channel Capacitance (CS(off), CD(off))	5pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-56dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-XFQFN Exposed Pad
Supplier Device Package	8-XQFN (1.6x1.6)
