Name: 74LVC2G3157DPJ
Brand: Nexperia USA Inc.
SKU: 74LVC2G3157DPJ
Price: 0.51 USD
Availability: InStock

REF: 74LVC2G3157DPJ Nexperia USA Inc.

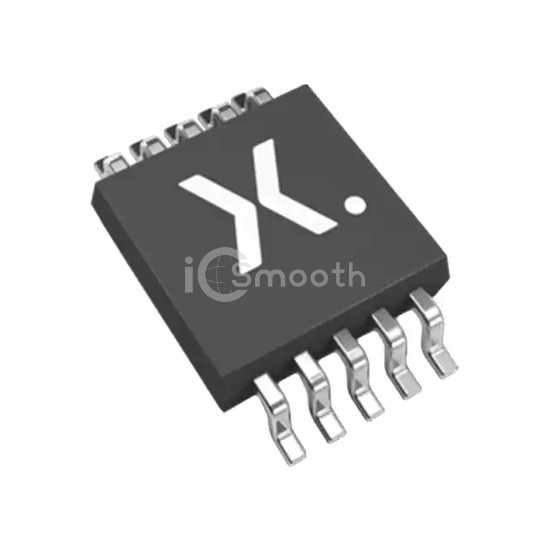

74LVC2G3157DPJ

Nexperia USA Inc.

IC SWITCH SPDT DUAL 10TSSOP

74LVC2G3157DPJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC SWITCH SPDT DUAL 10TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 2,730

Tiered Pricing USD

1+ $0.5100 —

10+ $0.3600 -29%

25+ $0.3220 -37%

100+ $0.2800 -45%

250+ $0.2599 -49%

500+ $0.2478 -51%

1,000+ $0.2402 -53% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	15Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	5.7ns, 3.8ns

-3db Bandwidth	-
Charge Injection	7.5pC
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	5µA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-TSSOP
