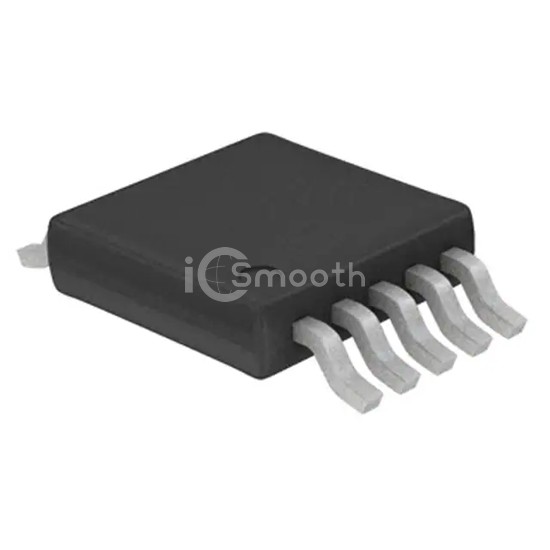

Name: 74LVC2G3157DP-Q10J
Brand: Nexperia USA Inc.
SKU: 74LVC2G3157DP-Q10J
Price: 0.62 USD
Availability: InStock

REF: 74LVC2G3157DP-Q10J Nexperia USA Inc.

74LVC2G3157DP-Q10J

Nexperia USA Inc.

74LVC2G3157DP-Q100/SOT552/TSSO

74LVC2G3157DP-Q10J is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. 74LVC2G3157DP-Q100/SOT552/TSSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 1.

Datasheet Request a Quote

In Stock: 3,716

Tiered Pricing USD

1+ $0.6200 —

10+ $0.4410 -29%

25+ $0.3948 -36%

100+ $0.3447 -44%

250+ $0.3208 -48%

500+ $0.3063 -51%

1,000+ $0.2999 -52% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	23Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	6.6ns, 4.5ns

-3db Bandwidth	300MHz
Charge Injection	7.5pC
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-54dB @ 10MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package	10-TSSOP
