Name: 74LVC1G3157GXZ
Brand: Nexperia USA Inc.
SKU: 74LVC1G3157GXZ
Price: 0.17 USD
Availability: InStock

REF: 74LVC1G3157GXZ Nexperia USA Inc.

74LVC1G3157GXZ

Nexperia USA Inc.

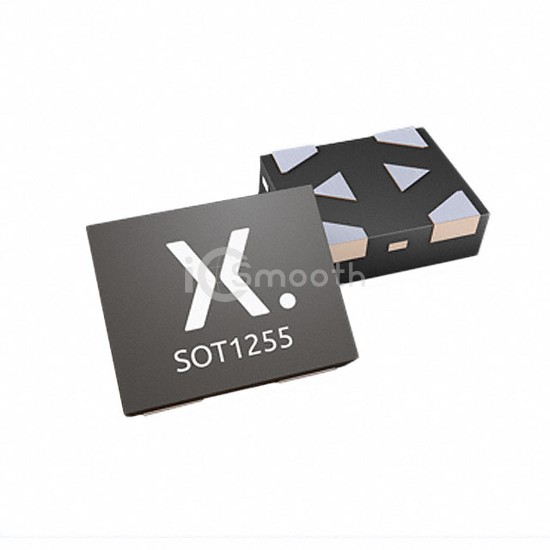

74LVC1G3157GX/SOT1255/X2SON6

74LVC1G3157GXZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. 74LVC1G3157GX/SOT1255/X2SON6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, number of circuits 1.

Datasheet Request a Quote

In Stock: 4,985

Tiered Pricing USD

1+ $0.1700 —

10+ $0.1130 -34%

25+ $0.0996 -41%

100+ $0.0845 -50%

250+ $0.0773 -55%

500+ $0.0730 -57%

1,000+ $0.0694 -59%

2,500+ $0.0663 -61% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max)	10Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	4ns, 3.5ns

-3db Bandwidth	300MHz
Charge Injection	7.5pC
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	5µA
Crosstalk	-
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFDFN
Supplier Device Package	6-X2SON (1.0x0.8)
