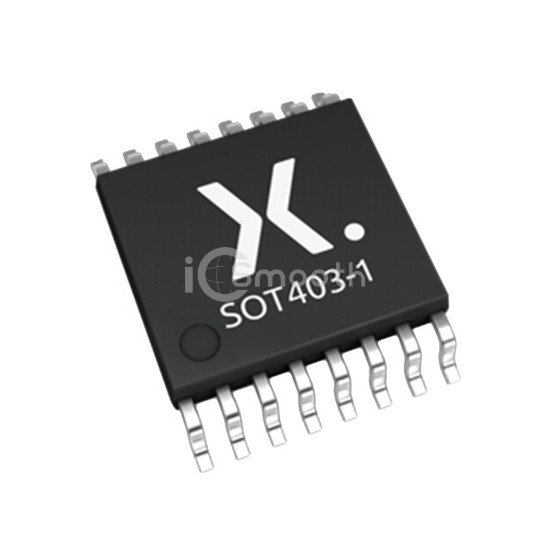

Name: 74HC4052PW-Q100,11
Brand: Nexperia USA Inc.
SKU: 74HC4052PW-Q100,11
Price: 0.41 USD
Availability: InStock

REF: 74HC4052PW-Q100,11 Nexperia USA Inc.

74HC4052PW-Q100,11

Nexperia USA Inc.

IC MUX/DEMUX DUAL 4CH 16TSSOP

74HC4052PW-Q100,11 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Nexperia USA Inc.. IC MUX/DEMUX DUAL 4CH 16TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-TSSOP (0.173", 4.40mm Width), number of circuits 2.

Datasheet Request a Quote

In Stock: 5,881

Tiered Pricing USD

1+ $0.4100 —

10+ $0.2890 -30%

25+ $0.2572 -37%

100+ $0.2227 -46%

250+ $0.2062 -50%

500+ $0.1962 -52%

1,000+ $0.1880 -54% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SP4T
Multiplexer/Demultiplexer Circuit	4:1
Number of Circuits	2
On-State Resistance (Max)	150Ohm
Channel-to-Channel Matching (ΔRon)	6Ohm
Voltage - Supply, Single (V+)	2V ~ 10V
Voltage - Supply, Dual (V±)	±1.5V ~ 5V
Switch Time (Ton, Toff) (Max)	58ns, 48ns

-3db Bandwidth	180MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	3.5pF
Current - Leakage (IS(off)) (Max)	2µA
Crosstalk	-60dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
