Name: 2N7002KQBZ
Brand: Nexperia USA Inc.
SKU: 2N7002KQBZ
Price: 0.40 USD
Availability: InStock

REF: 2N7002KQBZ Nexperia USA Inc.

2N7002KQBZ

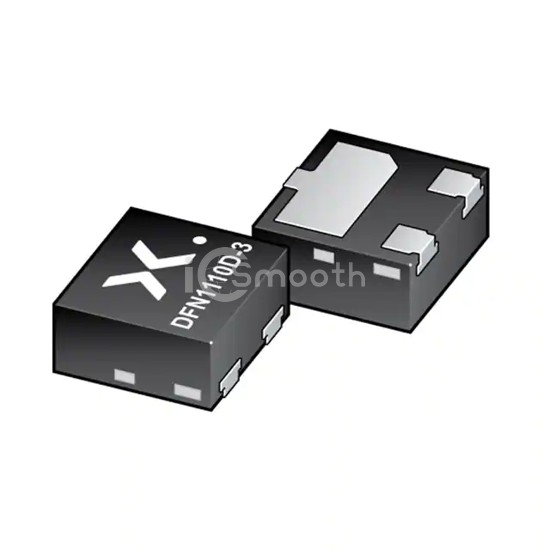

2N7002KQB/SOT8015/DFN1110D-3

2N7002KQBZ is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. 2N7002KQB/SOT8015/DFN1110D-3. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 150°C (TJ), package / case 3-XDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,160

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	720mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	850mOhm @ 720mA, 10V
Vgs(th) (Max) @ Id	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.92 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	28 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	420mW (Ta), 4.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	DFN1110D-3
Package / Case	3-XDFN Exposed Pad
