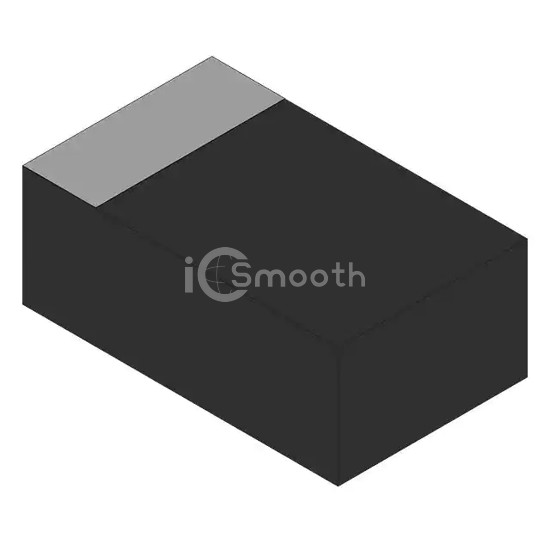

Name: 2N7002BKM315
Brand: Nexperia USA Inc.
SKU: 2N7002BKM315
Availability: InStock

REF: 2N7002BKM315 Nexperia USA Inc.

2N7002BKM315

NOW NEXPERIA 2N7002BKM - SMALL S

2N7002BKM315 is a Transistors - FETs, MOSFETs - Single manufactured by Nexperia USA Inc.. NOW NEXPERIA 2N7002BKM - SMALL S. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-101, SOT-883.

Datasheet Request a Quote

In Stock: 6,331

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	450mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	360mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883
Package / Case	SC-101, SOT-883
