Name: MPQ2735GG-AEC1-P
Brand: Monolithic Power Systems Inc.
SKU: MPQ2735GG-AEC1-P
Price: 1.95 USD
Availability: InStock

REF: MPQ2735GG-AEC1-P Monolithic Power Systems Inc.

MPQ2735GG-AEC1-P

Monolithic Power Systems Inc.

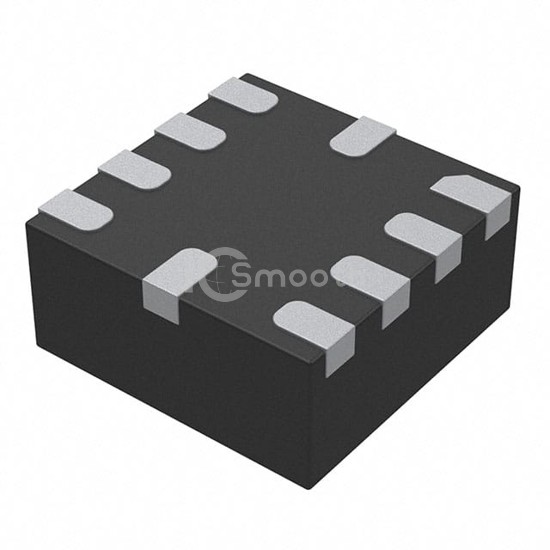

IC SWITCH SPDT DUAL 10QFN

MPQ2735GG-AEC1-P is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Monolithic Power Systems Inc.. IC SWITCH SPDT DUAL 10QFN. Key specifications: mounting type Surface Mount, package / case 10-TFQFN, number of circuits 2.

Request a Quote

In Stock: 9,634

Tiered Pricing USD

500+ $1.9464 —

1,000+ $1.8912 -3%

1,500+ $1.8636 -4%

2,500+ $1.8330 -6%

3,500+ $1.8151 -7%

5,000+ $1.7979 -8% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	-
Number of Circuits	2
On-State Resistance (Max)	450mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm (Typ)
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	24ns, 20ns (Typ)

-3db Bandwidth	50MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	6pF
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-70dB @ 100kHz
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	10-TFQFN
Supplier Device Package	10-QFN (2x2)
