Name: MP2735DQG-LF-Z
Brand: Monolithic Power Systems Inc.
SKU: MP2735DQG-LF-Z
Availability: InStock

REF: MP2735DQG-LF-Z Monolithic Power Systems Inc.

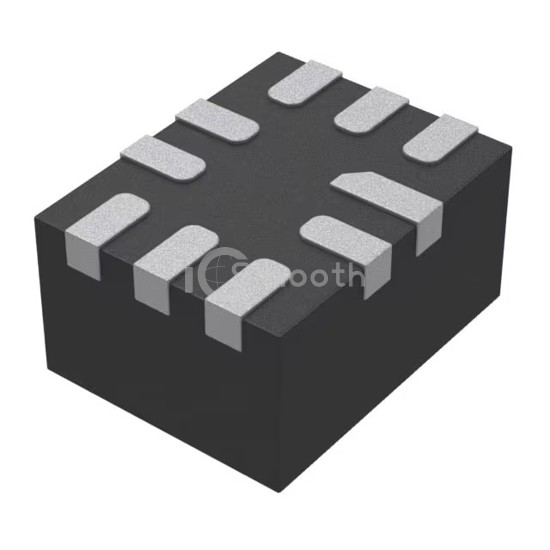

MP2735DQG-LF-Z

IC SWITCH DUAL SPDT 10QFN

MP2735DQG-LF-Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Monolithic Power Systems Inc.. IC SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-VFQFN, number of circuits 2.

Datasheet Request a Quote

In Stock: 4,925

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max)	450mOhm
Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	36ns, 30ns

-3db Bandwidth	50MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	55pF
Current - Leakage (IS(off)) (Max)	40nA
Crosstalk	-70dB @ 100kHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-VFQFN
Supplier Device Package	10-QFN (1.4x1.8)
