MAQ470GQE-AEC1-Z

In Stock: 4,875

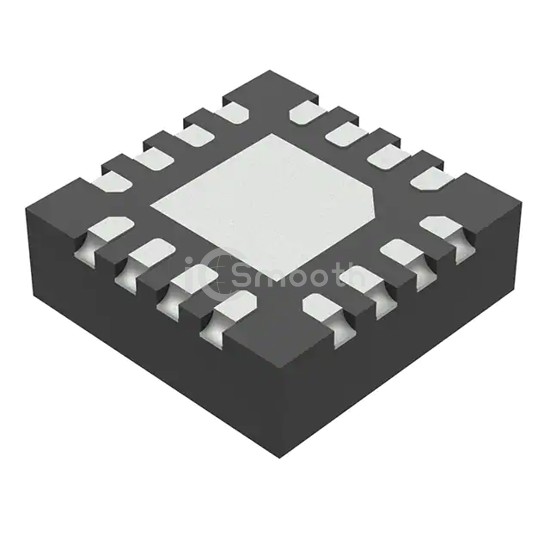

MAQ470GQE-AEC1-Z - Monolithic Power Systems Inc. - Position Sensors - Angle, Linear Position Measuring
REF: MAQ470GQE-AEC1-Z Monolithic Power Systems Inc.
MAQ470GQE-AEC1-Z

Monolithic Power Systems Inc.

12-BIT, AUTOMOTIVE ANGLE SENSORW

MAQ470GQE-AEC1-Z is a Position Sensors - Angle, Linear Position Measuring manufactured by Monolithic Power Systems Inc.. 12-BIT, AUTOMOTIVE ANGLE SENSORW. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C, voltage - supply 3V ~ 3.6V, package / case 16-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,875

Tiered Pricing USD
1+ $5.2700 —
5+ $4.7340 -10%
10+ $4.5360 -14%
25+ $4.2980 -18%
50+ $4.1356 -22%
100+ $3.9867 -24%
500+ $3.7332 -29% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringAngle
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical-
Linear Range-
OutputPWM, SPI
Output SignalProgrammable
Actuator TypeExternal Magnet, Not Included
Linearity-
Resistance-
Resistance Tolerance-
Voltage - Supply3V ~ 3.6V
Mounting TypeSurface Mount, Wettable Flank
Termination StyleSMD (SMT) Tab
Operating Temperature-40°C ~ 125°C
Package / Case16-VFQFN Exposed Pad
Supplier Device Package16-QFN (3x3)
