MSDM100-16

In Stock: 7,968

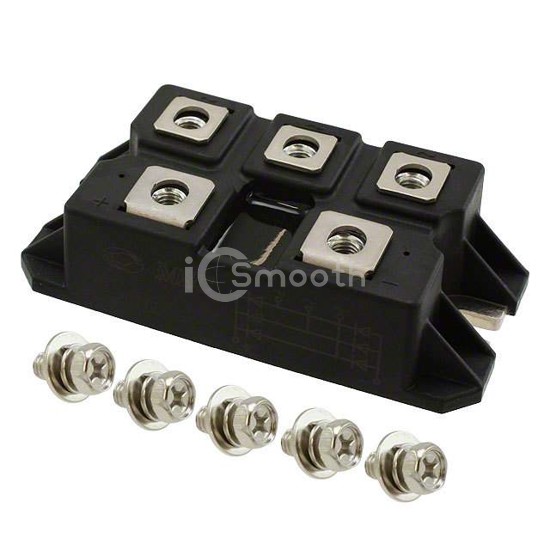

MSDM100-16 - Microsemi Corporation - Diodes - Bridge Rectifiers
REF: MSDM100-16 Microsemi Corporation
MSDM100-16

Microsemi Corporation

BRIDGE RECT 3P 1.6KV 100A M2-1

MSDM100-16 is a Diodes - Bridge Rectifiers manufactured by Microsemi Corporation. BRIDGE RECT 3P 1.6KV 100A M2-1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 7,968

Specifications

11 parameters
Product StatusObsolete
Diode TypeThree Phase
TechnologyStandard
Voltage - Peak Reverse (Max)1.6 kV
Current - Average Rectified (Io)100 A
Voltage - Forward (Vf) (Max) @ If1.9 V @ 300 A
Current - Reverse Leakage @ Vr500 µA @ 1600 V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Supplier Device PackageM2-1
