MSD75-08

In Stock: 9,157

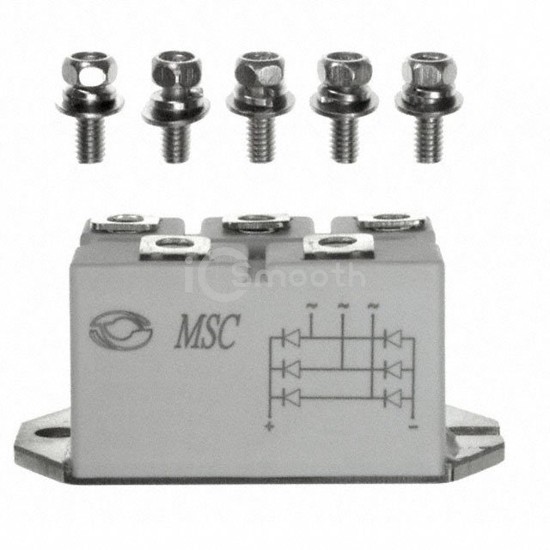

MSD75-08 - Microsemi Corporation - Diodes - Bridge Rectifiers
REF: MSD75-08 Microsemi Corporation
MSD75-08

Microsemi Corporation

BRIDGE RECT 3PHASE 800V 75A SM2

MSD75-08 is a Diodes - Bridge Rectifiers manufactured by Microsemi Corporation. BRIDGE RECT 3PHASE 800V 75A SM2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case M2.

Datasheet Request a Quote

In Stock: 9,157

Specifications

11 parameters
Product StatusObsolete
Diode TypeThree Phase
TechnologyStandard
Voltage - Peak Reverse (Max)800 V
Current - Average Rectified (Io)75 A
Voltage - Forward (Vf) (Max) @ If1.6 V @ 150 A
Current - Reverse Leakage @ Vr300 µA @ 800 V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseM2
Supplier Device PackageSM2
