MSD100-12

In Stock: 8,245

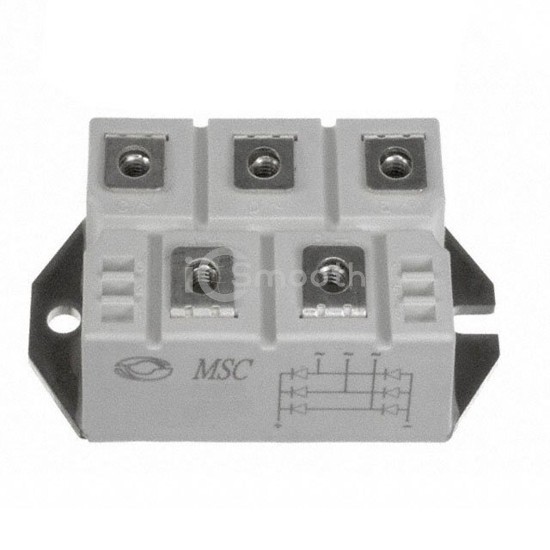

MSD100-12 - Microsemi Corporation - Diodes - Bridge Rectifiers
REF: MSD100-12 Microsemi Corporation
MSD100-12

Microsemi Corporation

BRIDGE RECT 3PHASE 1.2KV 100A M3

MSD100-12 is a Diodes - Bridge Rectifiers manufactured by Microsemi Corporation. BRIDGE RECT 3PHASE 1.2KV 100A M3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case M3.

Datasheet Request a Quote

In Stock: 8,245

Specifications

11 parameters
Product StatusObsolete
Diode TypeThree Phase
TechnologyStandard
Voltage - Peak Reverse (Max)1.2 kV
Current - Average Rectified (Io)100 A
Voltage - Forward (Vf) (Max) @ If1.9 V @ 300 A
Current - Reverse Leakage @ Vr300 µA @ 1200 V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseM3
Supplier Device PackageM3
