MSD100-08

In Stock: 2,308

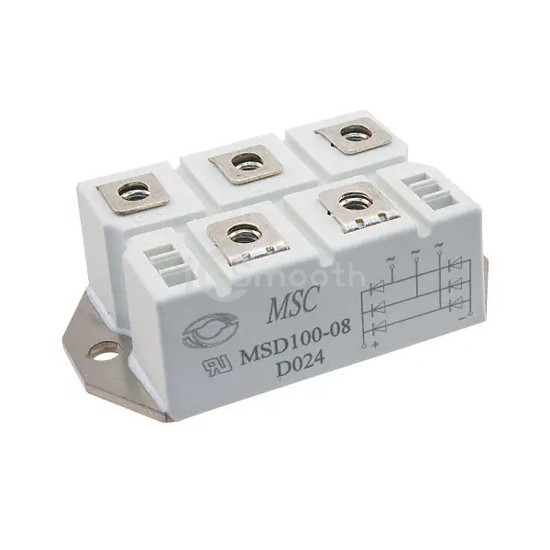

MSD100-08 - Microsemi Corporation - Diodes - Bridge Rectifiers
REF: MSD100-08 Microsemi Corporation
MSD100-08

Microsemi Corporation

BRIDGE RECT 3PHASE 800V 100A M3

MSD100-08 is a Diodes - Bridge Rectifiers manufactured by Microsemi Corporation. BRIDGE RECT 3PHASE 800V 100A M3. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SM3-20H.

Datasheet Request a Quote

In Stock: 2,308

Specifications

11 parameters
Product StatusObsolete
Diode TypeThree Phase
TechnologyStandard
Voltage - Peak Reverse (Max)800 V
Current - Average Rectified (Io)100 A
Voltage - Forward (Vf) (Max) @ If1.9 V @ 300 A
Current - Reverse Leakage @ Vr300 µA @ 800 V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSM3-20H
Supplier Device PackageM3
