MRF581AG

In Stock: 6,558

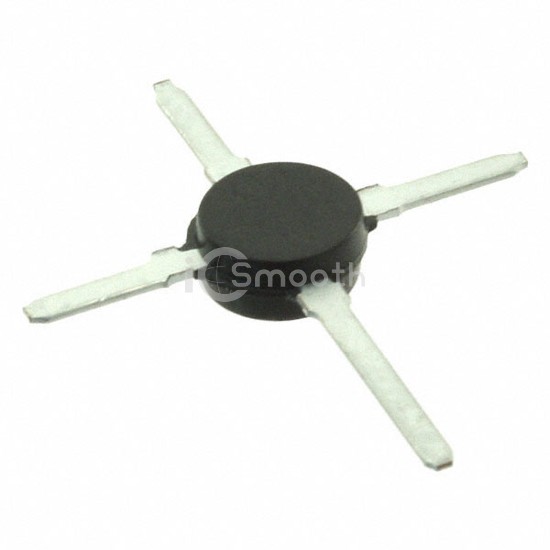

MRF581AG - Microsemi Corporation - Transistors - Bipolar (BJT) - RF
REF: MRF581AG Microsemi Corporation
MRF581AG

Microsemi Corporation

RF TRANS NPN 15V 5GHZ MACRO X

MRF581AG is a Transistors - Bipolar (BJT) - RF manufactured by Microsemi Corporation. RF TRANS NPN 15V 5GHZ MACRO X. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case Macro-X, current - collector (ic) (max) 200mA.

Datasheet Request a Quote

In Stock: 6,558

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition5GHz
Noise Figure (dB Typ @ f)3dB ~ 3.5dB @ 500MHz
Gain13dB ~ 15.5dB
Power - Max1.25W
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 50mA, 5V
Current - Collector (Ic) (Max)200mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseMacro-X
Supplier Device PackageMacro-X
