JANTX2N2857

In Stock: 3,476

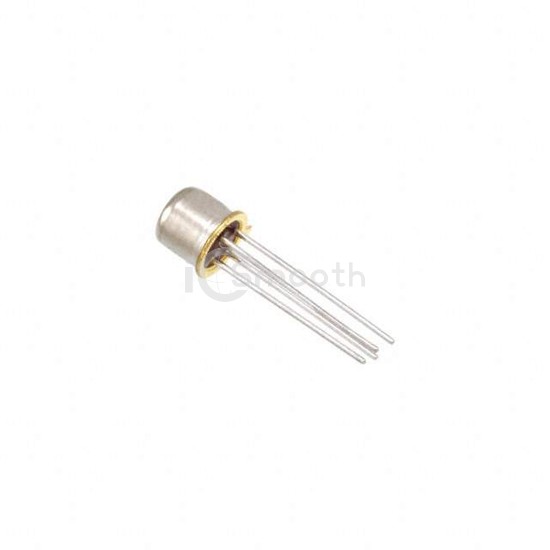

JANTX2N2857 - Microsemi Corporation - Transistors - Bipolar (BJT) - RF
REF: JANTX2N2857 Microsemi Corporation
JANTX2N2857

Microsemi Corporation

RF TRANS NPN 15V 500MHZ TO72

JANTX2N2857 is a Transistors - Bipolar (BJT) - RF manufactured by Microsemi Corporation. RF TRANS NPN 15V 500MHZ TO72. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case TO-72-3 Metal Can, current - collector (ic) (max) 40mA.

Datasheet Request a Quote

In Stock: 3,476

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition500MHz
Noise Figure (dB Typ @ f)4.5dB @ 450MHz
Gain12.5dB ~ 21dB @ 450MHz
Power - Max200mW
DC Current Gain (hFE) (Min) @ Ic, Vce30 @ 3mA, 1V
Current - Collector (Ic) (Max)40mA
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-72-3 Metal Can
Supplier Device PackageTO-72
