Name: APT53N60SC6
Brand: Microsemi Corporation
SKU: APT53N60SC6
Availability: InStock

REF: APT53N60SC6 Microsemi Corporation

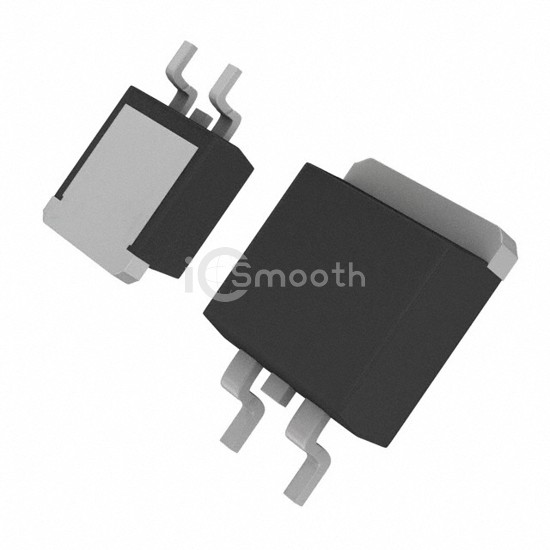

APT53N60SC6

MOSFET N-CH 600V 53A D3PAK

APT53N60SC6 is a Transistors - FETs, MOSFETs - Single manufactured by Microsemi Corporation. MOSFET N-CH 600V 53A D3PAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 5,006

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	53A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	70mOhm @ 25.8A, 10V
Vgs(th) (Max) @ Id	3.5V @ 1.72mA
Gate Charge (Qg) (Max) @ Vgs	154 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4020 pF @ 25 V
FET Feature	Super Junction
Power Dissipation (Max)	417W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D3Pak
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
