Name: 2N6901
Brand: Microsemi Corporation
SKU: 2N6901
Availability: InStock

REF: 2N6901 Microsemi Corporation

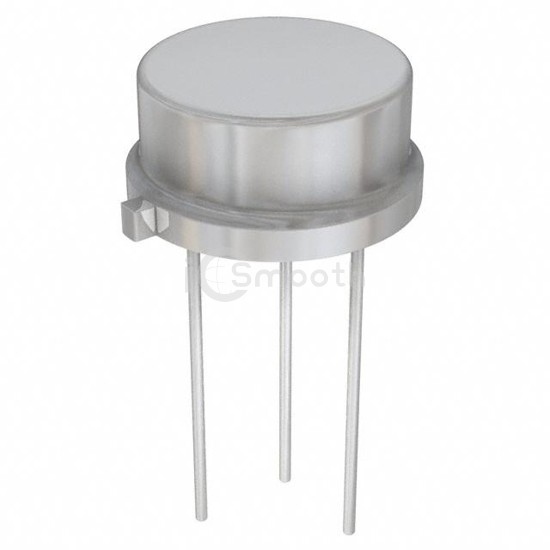

2N6901

MOSFET N-CH 100V 1.69A TO39

2N6901 is a Transistors - FETs, MOSFETs - Single manufactured by Microsemi Corporation. MOSFET N-CH 100V 1.69A TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AF Metal Can.

Datasheet Request a Quote

In Stock: 3,807

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1.69A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	2.6Ohm @ 1.07A, 5V
Vgs(th) (Max) @ Id	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1 nC @ 5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	8.33W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-39
Package / Case	TO-205AF Metal Can
