2N5109

In Stock: 1,633

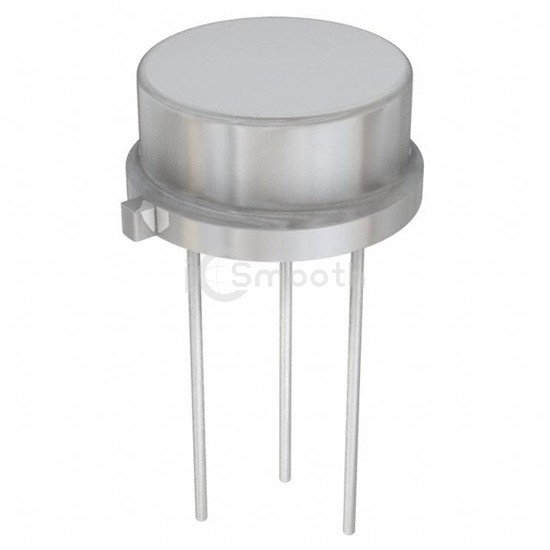

2N5109 - Microsemi Corporation - Transistors - Bipolar (BJT) - RF
REF: 2N5109 Microsemi Corporation
2N5109

Microsemi Corporation

RF TRANS NPN 20V 1.2GHZ TO39

2N5109 is a Transistors - Bipolar (BJT) - RF manufactured by Microsemi Corporation. RF TRANS NPN 20V 1.2GHZ TO39. Key specifications: mounting type Through Hole, package / case TO-205AD, TO-39-3 Metal Can, current - collector (ic) (max) 400mA, power - max 2.5W.

Datasheet Request a Quote

In Stock: 1,633

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)20V
Frequency - Transition1.2GHz
Noise Figure (dB Typ @ f)-
Gain12dB
Power - Max2.5W
DC Current Gain (hFE) (Min) @ Ic, Vce40 @ 50mA, 15V
Current - Collector (Ic) (Max)400mA
Operating Temperature-
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-39
