Name: VP2206N2
Brand: Microchip Technology
SKU: VP2206N2
Price: 18.39 USD
Availability: InStock

REF: VP2206N2 Microchip Technology

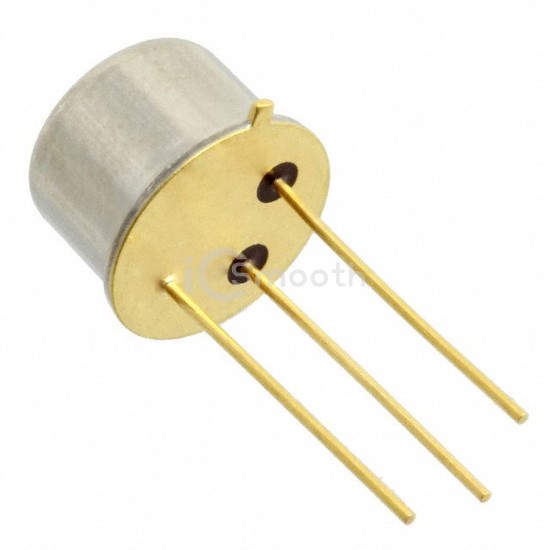

VP2206N2

MOSFET P-CH 60V 750MA TO39

VP2206N2 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET P-CH 60V 750MA TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AD, TO-39-3 Metal Can.

Datasheet Request a Quote

In Stock: 184

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	750mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	900mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	3.5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	450 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	360mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-39
Package / Case	TO-205AD, TO-39-3 Metal Can
