Name: VN2210N2
Brand: Microchip Technology
SKU: VN2210N2
Price: 17.58 USD
Availability: InStock

REF: VN2210N2 Microchip Technology

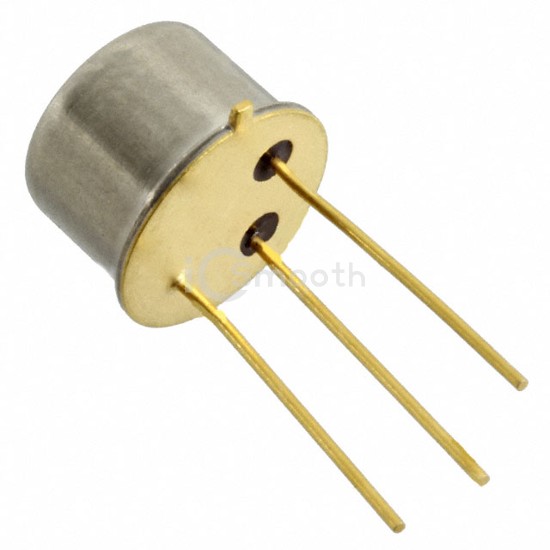

VN2210N2

MOSFET N-CH 100V 1.7A TO39

VN2210N2 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 100V 1.7A TO39. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-205AD, TO-39-3 Metal Can.

Datasheet Request a Quote

In Stock: 3,147

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	1.7A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	350mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.4V @ 10mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	500 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	360mW (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-39
Package / Case	TO-205AD, TO-39-3 Metal Can
