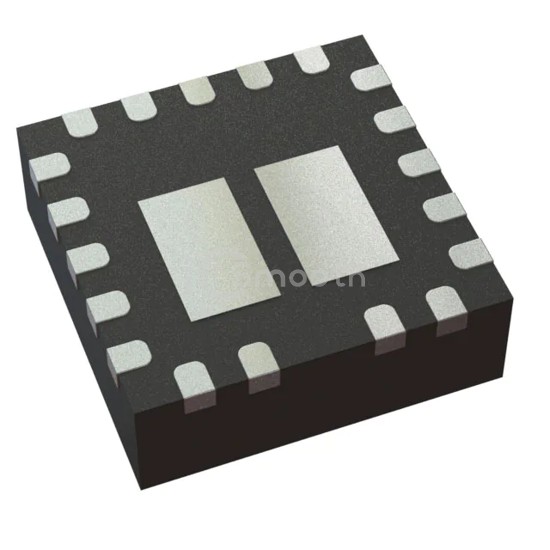

Name: UCS3205T-E/Q8A
Brand: Microchip Technology
SKU: UCS3205T-E/Q8A
Price: 1.95 USD
Availability: InStock

REF: UCS3205T-E/Q8A Microchip Technology

UCS3205T-E/Q8A

Microchip Technology

22V 5A BI-DIRECTIONAL LOAD SWITC

UCS3205T-E/Q8A is a PMIC - Power Distribution Switches, Load Drivers manufactured by Microchip Technology. 22V 5A BI-DIRECTIONAL LOAD SWITC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-VFQFN, 19 Leads, Exposed Pad.

Datasheet Request a Quote

In Stock: 9,009

Tiered Pricing USD

1+ $1.9500 —

25+ $1.6300 -16%

100+ $1.4800 -24% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	-
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.85V ~ 22V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	5A
Rds On (Typ)	30mOhm
Input Type	Non-Inverting
Features	Slew Rate Controlled
Fault Protection	Current Limiting (Fixed), Over Temperature, UVLO
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	19-VQFN (3x3)
Package / Case	20-VFQFN, 19 Leads, Exposed Pad
