Name: UCS2114-1-V/LX
Brand: Microchip Technology
SKU: UCS2114-1-V/LX
Price: 3.28 USD
Availability: InStock

REF: UCS2114-1-V/LX Microchip Technology

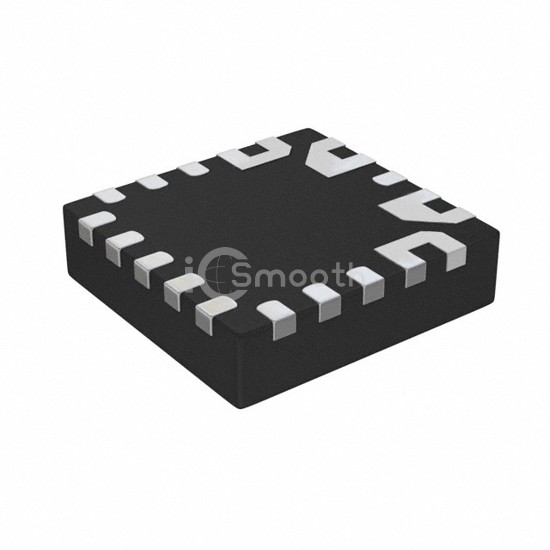

UCS2114-1-V/LX

Microchip Technology

IC PWR SWITCH 1:1 20VQFN

UCS2114-1-V/LX is a PMIC - Power Distribution Switches, Load Drivers manufactured by Microchip Technology. IC PWR SWITCH 1:1 20VQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 20-VFQFN.

Datasheet Request a Quote

In Stock: 5,424

Tiered Pricing USD

1+ $3.2800 —

25+ $2.7300 -17%

100+ $2.4800 -24% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	USB Switch
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	-
Interface	I²C, SMBus
Voltage - Load	2.9V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	4.5V ~ 5.5V

Current - Output (Max)	3A
Rds On (Typ)	18mOhm
Input Type	-
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	20-VQFN (3x3)
Package / Case	20-VFQFN
