Name: TP2424N8-G
Brand: Microchip Technology
SKU: TP2424N8-G
Availability: InStock

REF: TP2424N8-G Microchip Technology

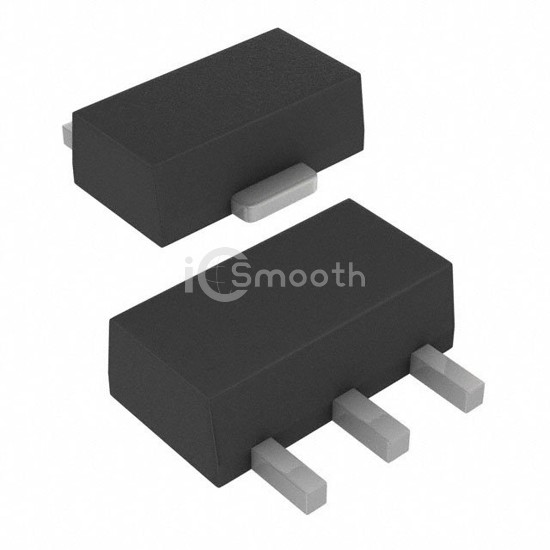

TP2424N8-G

MOSFET P-CH 240V 316MA TO243AA

TP2424N8-G is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET P-CH 240V 316MA TO243AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 5,514

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	240 V
Current - Continuous Drain (Id) @ 25°C	316mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-243AA (SOT-89)
Package / Case	TO-243AA
