Name: MSC100SM70JCU3
Brand: Microchip Technology
SKU: MSC100SM70JCU3
Price: 61.78 USD
Availability: InStock

REF: MSC100SM70JCU3 Microchip Technology

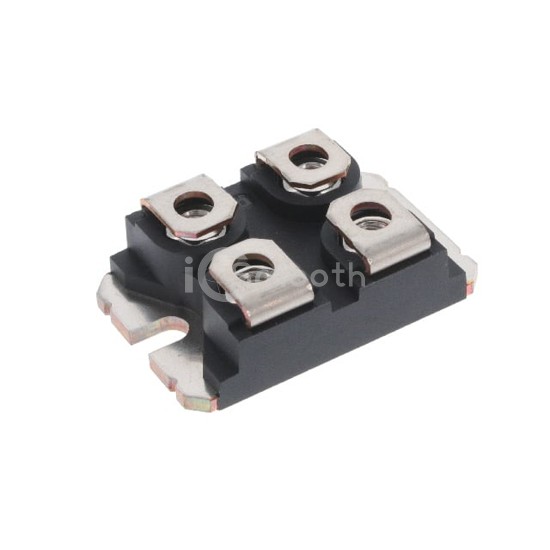

MSC100SM70JCU3

Microchip Technology

SICFET N-CH 700V 124A SOT227

MSC100SM70JCU3 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. SICFET N-CH 700V 124A SOT227. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC.

Datasheet Request a Quote

In Stock: 15

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	124A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	19mOhm @ 40A, 20V
Vgs(th) (Max) @ Id	2.4V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	215 nC @ 20 V

Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	4500 pF @ 700 V
FET Feature	-
Power Dissipation (Max)	365W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227 (ISOTOP®)
Package / Case	SOT-227-4, miniBLOC
