Name: MSC035SMA170B4
Brand: Microchip Technology
SKU: MSC035SMA170B4
Price: 36.73 USD
Availability: InStock

REF: MSC035SMA170B4 Microchip Technology

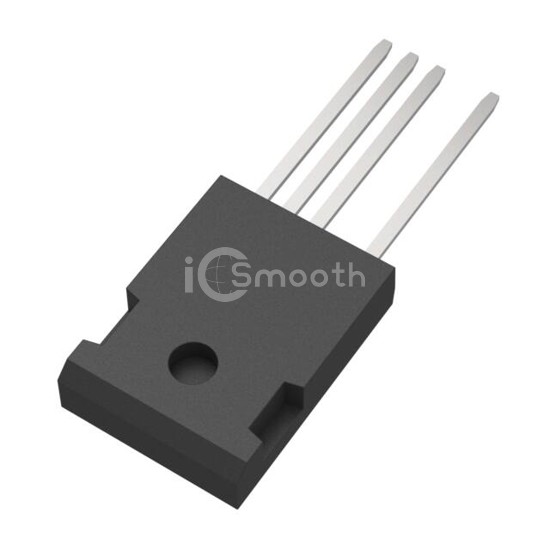

MSC035SMA170B4

Microchip Technology

MOSFET SIC 1700V 35 MOHM TO-247-

MSC035SMA170B4 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET SIC 1700V 35 MOHM TO-247-. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 3,398

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	45mOhm @ 30A, 20V
Vgs(th) (Max) @ Id	3.25V @ 2.5mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	178 nC @ 20 V

Vgs (Max)	+23V, -10V
Input Capacitance (Ciss) (Max) @ Vds	3300 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	370W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
