Name: MSC035SMA070B4
Brand: Microchip Technology
SKU: MSC035SMA070B4
Price: 14.15 USD
Availability: InStock

REF: MSC035SMA070B4 Microchip Technology

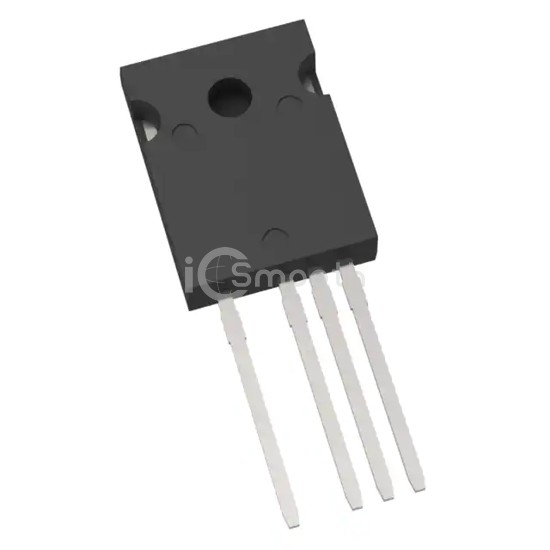

MSC035SMA070B4

Microchip Technology

TRANS SJT N-CH 700V 77A TO247-4

MSC035SMA070B4 is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. TRANS SJT N-CH 700V 77A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 1,381

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	700 V
Current - Continuous Drain (Id) @ 25°C	77A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	44mOhm @ 30A, 20V
Vgs(th) (Max) @ Id	2.7V @ 2mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	99 nC @ 20 V

Vgs (Max)	+23V, -10V
Input Capacitance (Ciss) (Max) @ Vds	2010 pF @ 700 V
FET Feature	-
Power Dissipation (Max)	283W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
