Name: MSC025SMA120B
Brand: Microchip Technology
SKU: MSC025SMA120B
Price: 36.59 USD
Availability: InStock

REF: MSC025SMA120B Microchip Technology

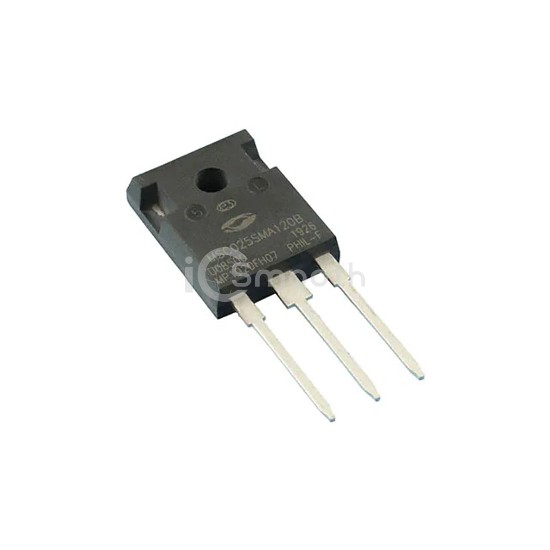

MSC025SMA120B

Microchip Technology

SICFET N-CH 1.2KV 103A TO247-3

MSC025SMA120B is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. SICFET N-CH 1.2KV 103A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 3,799

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	103A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	20V
Rds On (Max) @ Id, Vgs	31mOhm @ 40A, 20V
Vgs(th) (Max) @ Id	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	232 nC @ 20 V

Vgs (Max)	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds	3020 pF @ 1000 V
FET Feature	-
Power Dissipation (Max)	500W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
