Name: MIC2514YM5-TR
Brand: Microchip Technology
SKU: MIC2514YM5-TR
Price: 3.17 USD
Availability: InStock

REF: MIC2514YM5-TR Microchip Technology

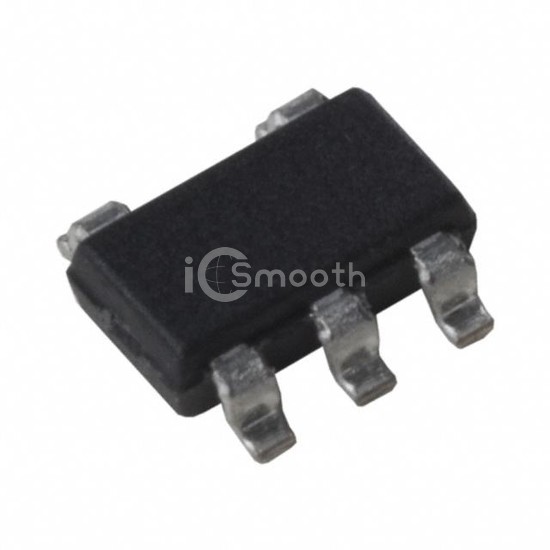

MIC2514YM5-TR

Microchip Technology

IC PWR SWITCH P-CHAN 1:1 SOT23-5

MIC2514YM5-TR is a PMIC - Power Distribution Switches, Load Drivers manufactured by Microchip Technology. IC PWR SWITCH P-CHAN 1:1 SOT23-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case SC-74A, SOT-753.

Datasheet Request a Quote

In Stock: 5,146

Tiered Pricing USD

1+ $3.1700 —

25+ $2.6400 -17%

100+ $2.4000 -24% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	P-Channel
Interface	On/Off
Voltage - Load	3V ~ 13.5V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	1.2A
Rds On (Typ)	950mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-5
Package / Case	SC-74A, SOT-753
