Name: MCP87090T-U/MF
Brand: Microchip Technology
SKU: MCP87090T-U/MF
Price: 0.50 USD
Availability: InStock

REF: MCP87090T-U/MF Microchip Technology

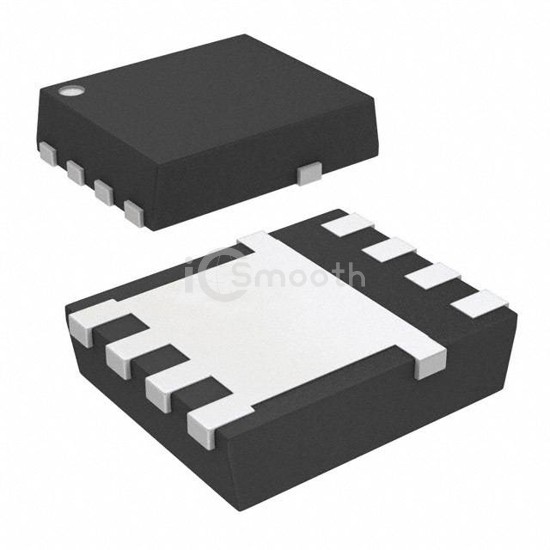

MCP87090T-U/MF

Microchip Technology

MOSFET N-CH 25V 64A 8PDFN

MCP87090T-U/MF is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 25V 64A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 1,355

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	64A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10.5mOhm @ 10V
Vgs(th) (Max) @ Id	1.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 4.5 V

Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	580 pF @ 12.5 V
FET Feature	-
Power Dissipation (Max)	2.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (5x6)
Package / Case	8-PowerTDFN
