Name: HV2918/R4X
Brand: Microchip Technology
SKU: HV2918/R4X
Price: 29.87 USD
Availability: InStock

REF: HV2918/R4X Microchip Technology

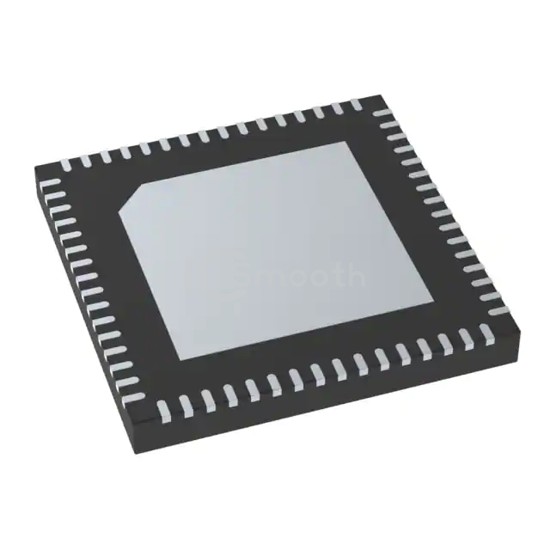

HV2918/R4X

32-CH 200V +5V BIAS MUX SPDT

HV2918/R4X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Microchip Technology. 32-CH 200V +5V BIAS MUX SPDT. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 64-VFQFN Exposed Pad, number of circuits 16.

Datasheet Request a Quote

In Stock: 260

Tiered Pricing USD

1+ $29.8700 —

25+ $24.8900 -17%

100+ $22.6301 -24% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	16
On-State Resistance (Max)	9Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	4.5V ~ 6.3V
Voltage - Supply, Dual (V±)	4.5V ~ 6.3V
Switch Time (Ton, Toff) (Max)	5µs, 5µs

-3db Bandwidth	50MHz
Charge Injection	100pC
Channel Capacitance (CS(off), CD(off))	21pF
Current - Leakage (IS(off)) (Max)	3µA
Crosstalk	-70dB @ 5MHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Supplier Device Package	64-VQFN (9x9)
