Name: HV2916/AJA
Brand: Microchip Technology
SKU: HV2916/AJA
Availability: InStock

REF: HV2916/AJA Microchip Technology

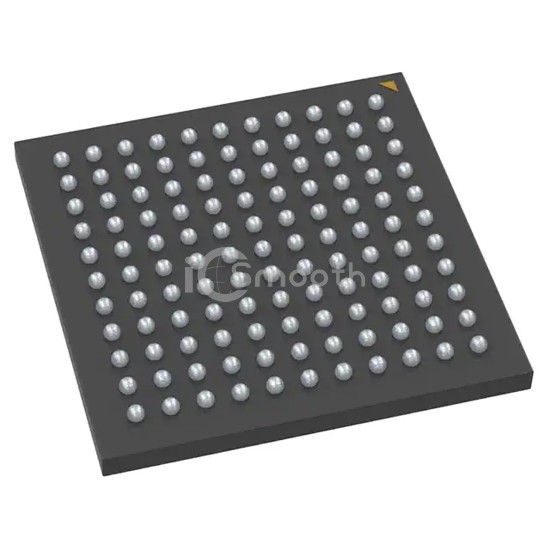

HV2916/AJA

IC 32-CH 200V +5V BIAS MUX SPST

HV2916/AJA is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Microchip Technology. IC 32-CH 200V +5V BIAS MUX SPST. Key specifications: mounting type Surface Mount, package / case 121-TFBGA, number of circuits 32.

Request a Quote

In Stock: 5,677

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	32
On-State Resistance (Max)	6Ohm (Typ)
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	5V
Voltage - Supply, Dual (V±)	5V
Switch Time (Ton, Toff) (Max)	-

-3db Bandwidth	50MHz
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	-
Current - Leakage (IS(off)) (Max)	-
Crosstalk	-
Operating Temperature	-
Mounting Type	Surface Mount
Package / Case	121-TFBGA
Supplier Device Package	121-TFBGA (10x10)
