Name: HV2621/R4X
Brand: Microchip Technology
SKU: HV2621/R4X
Price: 27.53 USD
Availability: InStock

REF: HV2621/R4X Microchip Technology

HV2621/R4X

16-CH 300V MUX (SPST), NO BLEED

HV2621/R4X is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Microchip Technology. 16-CH 300V MUX (SPST), NO BLEED. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case 64-VFQFN Exposed Pad, number of circuits 1.

Datasheet Request a Quote

In Stock: 4

Tiered Pricing USD

1+ $27.5300 —

25+ $22.9400 -17%

100+ $20.8501 -24% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	1
On-State Resistance (Max)	30Ohm
Channel-to-Channel Matching (ΔRon)	1.5Ohm
Voltage - Supply, Single (V+)	3V ~ 5.5V
Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	6µs, 6µs

-3db Bandwidth	-
Charge Injection	1000pC
Channel Capacitance (CS(off), CD(off))	10pF
Current - Leakage (IS(off)) (Max)	15µA
Crosstalk	-70dB @ 5MHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount

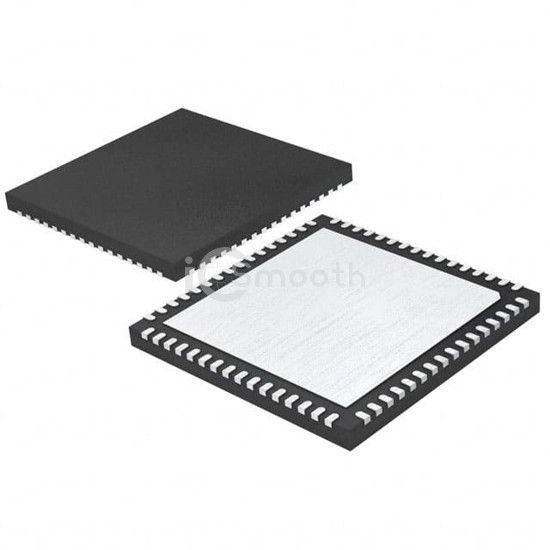

Package / Case	64-VFQFN Exposed Pad
Supplier Device Package	64-VQFN (9x9)
