APTML100U60R020T1AG

In Stock: 12

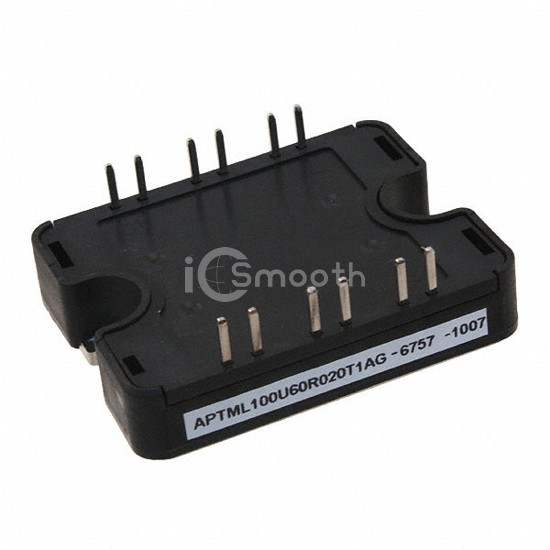

APTML100U60R020T1AG - Microchip Technology - Transistors - FETs, MOSFETs - Single
REF: APTML100U60R020T1AG Microchip Technology
APTML100U60R020T1AG

Microchip Technology

MOSFET N-CH 1000V 20A SP1

APTML100U60R020T1AG is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1000V 20A SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP1.

Datasheet Request a Quote

In Stock: 12

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1000 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs720mOhm @ 10A, 10V
Vgs(th) (Max) @ Id4V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds6000 pF @ 25 V
FET Feature-
Power Dissipation (Max)520W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSP1
Package / CaseSP1
