APTM120DA30CT1G

In Stock: 5,698

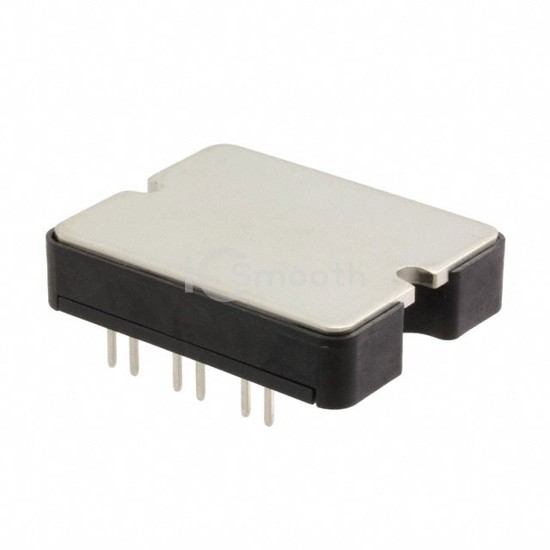

APTM120DA30CT1G - Microchip Technology - Transistors - FETs, MOSFETs - Single
REF: APTM120DA30CT1G Microchip Technology
APTM120DA30CT1G

Microchip Technology

MOSFET N-CH 1200V 31A SP1

APTM120DA30CT1G is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 1200V 31A SP1. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SP1.

Datasheet Request a Quote

In Stock: 5,698

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C31A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs360mOhm @ 25A, 10V
Vgs(th) (Max) @ Id5V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs560 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds14560 pF @ 25 V
FET Feature-
Power Dissipation (Max)657W (Tc)
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSP1
Package / CaseSP1
